Bearing friction torque is a key indicator for evaluating the dynamic performance of bearings. Our company has developed a series of bearing friction torque measuring instruments and spearheaded the formulation of the national standard GB/T 32562-2016 “Rolling Bearings—Friction Torque Measurement Method.”

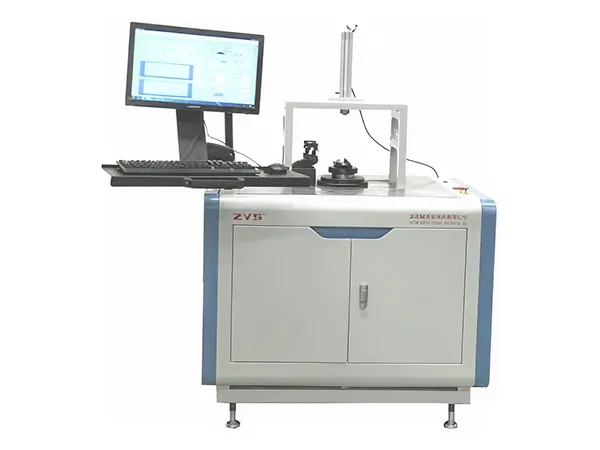

M9910:
M9930:
The bearing friction torque measuring instrument is suitable for bearing inspection in fields such as aerospace, machine tools, new energy, and electric motors.
Features:
• Ultra-precise air-bearing support measurement with no interference;
• Integrated measurement of starting torque and dynamic torque;
• Forward/reverse rotation measurement with variable speed and load capabilities;
• High integration for rapid changeovers and user-friendly operation;
• Customizable to meet specific requirements.
Model
M9908
M9910
M9930
Measuring Range（mm）
ID Φ10～Φ30
ID Φ10～Φ60
ID Φ65～Φ120
Measurement Item
Dynamic Torque
Starting Torque
Dynamic Torque
Starting Torque
Dynamic Torque
Torque Measurement Range
2～50N.mm
2～200N.mm
0.02～2N.m
Indicated Value Error
±1%F.S
±1%F.S
±1%F.S
Measured Rotational Speed
5r/min
2～200r/min
Applied Load（N）
0～15
4～200
40～2000
Dimensions（mm）
700×500×500
1000×720×1600
1000×720×1600
Installation Requirements
Air Supply Pressure：0.45～0.65MPa Power Supply：500W，AC Power 220V± 10%，50 Hz
Temperature：(10～30)℃ Relative Humidity：≤85%
