Our company's T69 series bearing projection measurement instrument is suitable for bearing inspection in aviation, aerospace, machine tools, new energy, and robotics sectors. It spearheaded the development of the industry standard JB/T 10186 “Technical Requirements for Assembled Angular Contact Ball Bearings.”

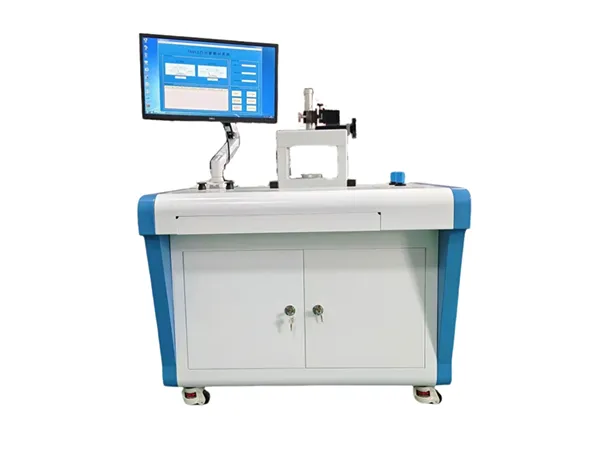

T6928:

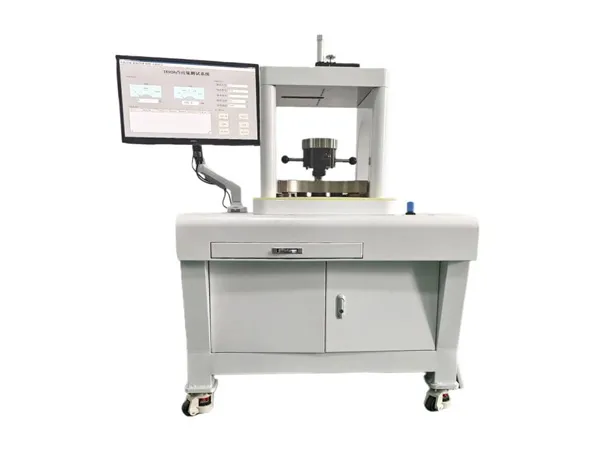

T6912:
Bearing projection is a critical metric in the assembly process of angular contact ball bearings, significantly impacting the host machine's precision, load-carrying capacity, rigidity, energy consumption, vibration, and service life.
This instrument received the Second Prize for Scientific and Technological Progress from the Ministry of Machinery Industry.
• High-precision support guidance for accurate load application
• High-accuracy displacement sensor for precise displacement measurement
• Optional stiffness measurement module
• Pneumatic loading ensures smooth, impact-free force application
• Customizable to specific requirements
T693
T6912
T6928
Measuring Range（mm）
ID Φ3～Φ17
ID Φ10～Φ60
ID Φ65～Φ120
Measurement Range（μm）
±100
±100
±200
±200
±400
Indicated Value Error（μm）
±1
±1
±2
Applied Load（N）
0～100
40～500
400～3500
Dimensions（mm）
1000×720×1300
1000×720×1500
1000×720×1700
Installation Requirements
Air Supply Pressure：0.45～0.65MPa Power Supply：500W，AC Power 220V± 10%，50 Hz
Temperature：(10～30)℃ Relative Humidity：≤85%
