Main function:
This series of superfinishing in the way of centerless through-feed machine the surface,including the needle roller,cylindrical，roller,taper roller,ring of bearing, oil-needle, piston, spool etc.
After grinding process,the superfinishing process can improve the surface quality & the geometrical precision;the machines have high efficiency,precision,& reliability etc.widely used in the industry of the beating,car,motorcycle. pin valve oil pump and hydraulic parts etc,especially suited for superfinishing the crown of taper roller & cylindrical roller.
Through special designing & processing the guide roller can receive several crown types of rollers,such as arc fullcrown type,logarithmic type.

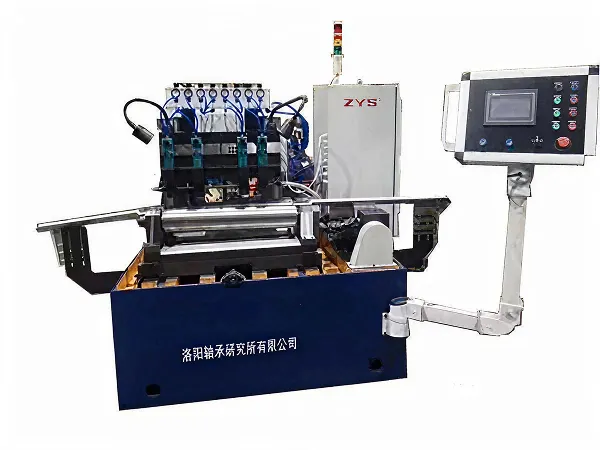

Roller super-finishing machine 3MK6280

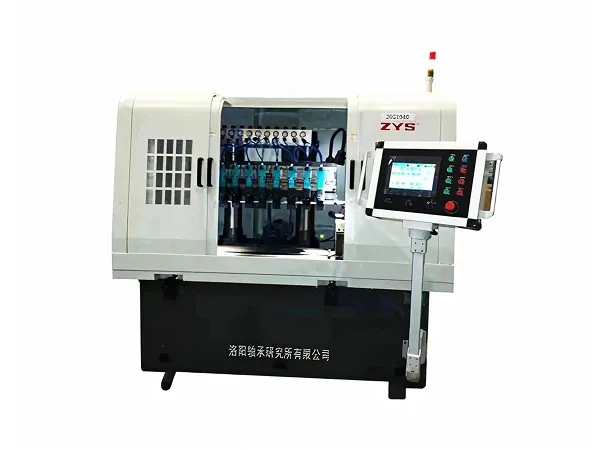

Roller super-finishing machine 3MK6230
|
Model |
3MK6230 |
3MK6280 |
3MK6130 |
3MK6140 |
3MK6312 |
|
Processing Scope（mm） |
6-30 |
30-80 |
6-30 |
10-40 |
6-120 |
|
Roundness Improvement Rate(%) |
≥30 |
≥30 |
≥30 |
≥30 |
≥30 |
|
Roughness Ra(μm) |
0.08-0.04 |
0.08-0.04 |
0.08-0.04 |
0.08-0.04 |
0.08-0.04 |
|
Convexity Measure（μm） |
<20 |
<50 |
<15 |
<15 |
Straight lines |
|
Oscillation frequency（r/min） |
≤1500 |
≤1500 |
≤1500 |
≤1500 |
≤1500 |
|
Oscillation amplitude（mm） |
0-4 |
0-4 |
0-4 |
0-4 |
0-4 |
|
Guide roller rotational speed（r/min） |
<250 |
<250 |
<250 |
<250 |
<250 |
|
Maximum Pneumatic Pressure（MPa） |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
|
External Dimensions（mm） |
1850×1480×1920 |
2360×1480×2400 |
1850×1480×1920 |
2360×1480×2400 |
1860×1800×1860 |
|
Gross weight（kg） |
3200 |
4500 |
3200 |
4500 |
3200 |
